The Other Thing Lab-Grown Diamonds Are Used For

A lab grown diamond quantum sensor is a piece of synthetic diamond grown with deliberate atomic flaws called nitrogen-vacancy centres, whose electron spins shift measurably in a magnetic field and can be read out with a green laser and a photodetector. Because the rigid carbon lattice holds those spins steady, the sensor works at ordinary room temperature — no cryogenics.

This is the part of the lab-grown diamond story that never reaches an advertisement. The same growth technology that produces a stone for a ring also produces the material inside magnetometers at MIT Lincoln Laboratory, Stuttgart, Harvard and Delft. Different specification, same chemistry.

What is an NV centre, exactly?

A nitrogen-vacancy centre is a two-part defect in the diamond lattice: one nitrogen atom sitting where a carbon atom should be, immediately next to a vacancy — a lattice site with nothing in it. Nitrogen and a hole, side by side. That is the whole thing.

Nothing about it is exotic. Nitrogen is the commonest impurity in diamond, natural or grown, and what makes many stones faintly yellow. Vacancies get knocked in by irradiation, then persuaded by annealing to drift until they settle beside a nitrogen atom; the diamond in the neuron experiment below was annealed in vacuum at 800°C. The result is a small quantum system held rigidly inside a transparent, inert block.

Why is a flaw in a crystal useful?

Because you can talk to it with light and listen the same way.

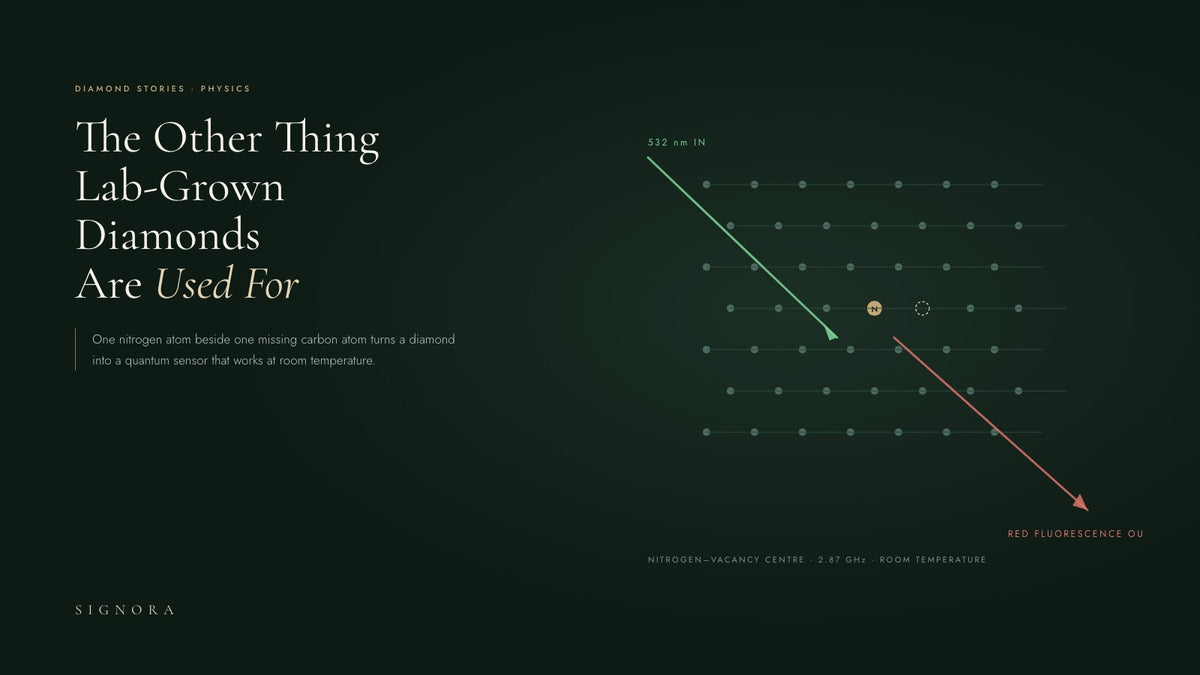

The electrons at an NV centre form a spin triplet: three spin states in the ground level. Two sit slightly higher than the third, separated by about 2.87 gigahertz with no magnetic field applied at all. Shine green light at roughly 532 nanometres into the diamond and the defect fluoresces red. Here is the useful accident — the lower state glows brighter, because the other two often drop back by a dark route emitting no visible photon.

So you sweep microwaves across the crystal while watching the red glow. When the frequency hits the gap between spin states, the glow dips. Apply a field and the two upper states pull apart, moving the dips apart in proportion to it. Measure the gap and you have measured the field, by counting photons. This is optically detected magnetic resonance.

The lattice helps too. Carbon-12, the dominant isotope, has no nuclear spin, so a pure crystal is magnetically almost silent — a very still room in which to hear something faint.

Why does room temperature matter so much?

Most quantum systems are fragile in one specific way: warmth scrambles them. Superconducting qubits are cooled to within thousandths of a degree of absolute zero, inside dilution refrigerators the size of a small room.

NV centres need none of that. Their spin-state energy gap is large enough, and the lattice stiff enough, that ordinary thermal jostling does not wipe out the quantum behaviour. It is the same stiffness and thermal conductivity that makes a jeweller's thermal probe read a stone as diamond. The sensor can sit a few hundred microns from a living nerve, or on a satellite.

What is a lab grown diamond quantum sensor actually used for?

Application	What it measures	Why diamond
Biomagnetic sensing	Nerve and heart currents	Runs warm; probe light stays in the chip
Nanoscale NMR	Nuclear spins in tiny samples	A defect nanometres deep hears only what sits above it
Cellular thermometry	Temperature inside a living cell	Nanodiamonds enter cells, read optically, no electrode
Chip and materials imaging	Stray fields from currents and domains	Wide-field imaging at ambient conditions
Navigation and geomagnetics	Direction and strength of Earth's field	Rugged; calibration ties to atomic constants
Quantum memory and networking	Stores and entangles quantum states	Electron spin couples to photons; nuclear spins store

Can a diamond really detect a single nerve firing?

Yes, in the laboratory. In 2016 a Harvard and MIT team — Barry, Turner, Schloss, Lukin, Park and Walsworth among them — published the optical magnetic detection of single-neuron action potentials in PNAS (113, 14133–14138). They used excised giant axons from the marine fanworm Myxicola infundibulum and the longfin squid Loligo pealeii, roughly 300 microns from axon centre to sensing layer.

The measurement is label-free, and the probe light never enters the animal; it stays inside the biocompatible diamond chip. That is how the same group read action potentials through the body wall of whole, live worms — about 1.2 millimetres from axon to sensor — after more than 24 hours of continuous laser and microwave exposure, with little change in signal or behaviour.

Magnetic fields pass through tissue largely unperturbed; electrical signals are smeared by everything they cross.

Human work is younger and far more cautious. In January 2026 a large collaboration including the Budker and Wrachtrup groups and Element Six posted a preprint on human magnetocardiography — the magnetic signature of the heartbeat — using compact room-temperature sensors at 6 to 26 picotesla per root hertz, from sensing volumes under half a cubic millimetre, shielded and unshielded. The catch, stated plainly by the authors: traces had to be averaged over hundreds to thousands of heartbeats. A promising instrument. Not a diagnostic one, and not yet peer-reviewed.

What is nanoscale NMR, and why does diamond help?

Conventional NMR, the workhorse behind chemistry labs and MRI scanners, has one stubborn limitation: it needs a huge number of identical molecules to give a readable signal. In 2013 two groups published back to back in Science. Mamin and colleagues at IBM's Almaden Research Center reported nanoscale NMR with a single NV spin sensor; Staudacher and colleagues at Stuttgart reported NMR spectroscopy on a sample volume of five nanometres cubed. A defect a few nanometres down hears only the sliver above it.

The same year, Kucsko and colleagues at Harvard reported something stranger in Nature (500, 54–58): nanodiamonds and gold nanoparticles put inside a single human embryonic fibroblast, then used to map and control temperature gradients inside that living cell, down to 200 nanometres. In bulk diamond the method resolved changes of about 1.8 millikelvin.

Can an NV centre store quantum information?

It can — and here the defect stops being a sensor and becomes a network node. At QuTech in Delft, Pompili and colleagues reported a three-node entanglement-based network of remote solid-state qubits in Science in 2021; Hermans and colleagues followed in Nature in 2022, teleporting a qubit between non-neighbouring nodes. The electron spin handles the photons; a nearby nuclear spin holds the memory. Research infrastructure for a possible quantum internet, not a machine anyone is selling.

How close is any of this to leaving the laboratory?

Closer than a decade ago, further than the headlines suggest.

In May 2025 a workshop in Washington, D.C. gathered researchers, industry and government to take stock. The findings report, posted that November by Braje, Markham, Schloss, Slocum and Walsworth — of MIT Lincoln Laboratory, Element Six, the Air Force Research Laboratory and Maryland — is unusually blunt. Demonstrations with excellent sensitivity, it says, have not yet translated into commercial products, and the constraint is not the physics. It is materials and integration: yields in etching, polishing and surface processing need urgent improvement, and no consensus has emerged on standard categories of "sensor-grade" diamond.

The picture is mixed, not uniformly behind. For raw field sensitivity, SQUIDs and optically pumped magnetometers still lead. For imaging at ambient conditions, the same report points to NV microscopes that outperform SQUIDs. Diamond's advantage is where you can put the detector.

Deployments exist in narrow niches. On 29 March 2026 SBQuantum's diamond magnetometer reached low Earth orbit aboard a Spire Global satellite — the flight phase of MagQuest, a seven-year US National Geospatial-Intelligence Agency competition to improve the World Magnetic Model, the model behind the compass in about a billion phones. It concludes in autumn 2026.

Is quantum-grade diamond the same as the stone in a ring?

Same family of process, different specification.

Both are grown by chemical vapour deposition: a carbon-bearing gas broken apart in a plasma, depositing carbon onto a seed atom by atom. We've written about how lab-grown diamonds are made elsewhere. Gem growth is tuned for size, clarity and colour. Quantum-grade growth is tuned the opposite way — nitrogen pushed to parts per billion, the feedstock methane isotopically purified so stray carbon-13 spins don't blur the signal. Then the nitrogen goes back, deliberately, at a controlled density. You want your defects, and you want them uniform.

There is a quiet irony in the supplier list. Element Six, whose lineage runs back to De Beers, co-authored both that Washington report and the human heart preprint. The tradition that taught the twentieth century that a diamond's worth lies in its scarcity now sells engineered diamond by grade, to buyers who care only what sits inside the lattice.

Which brings us to the word. "Synthetic" gets used as a slight; in physics it means close to the opposite — specified, repeatable, made to a number. A grown diamond is not an imitation of a mined one. Same carbon, same lattice, made under conditions somebody wrote down. Our page on lab-grown versus natural diamonds sets out where the two genuinely differ.
